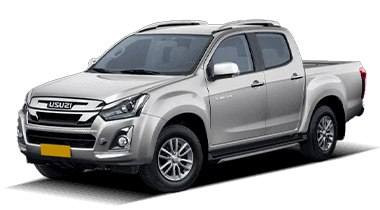

Isuzu S-CAB Specifications
Select Variants of Isuzu S-CAB
Engine displacement
2,499
Engine type
VGT Intercooled Diesel
Gear box
5-Speed
No of cylinder
4
Transmission type
Manual
Valves per cylinder
4
Ex-Showroom Price
₹13,36,660
Cup holders front
Yes
Foldable rear seat
60:40 Split
Seating capacity
5
Body type
Pickup Truck
Gross weight in kg
2,850
Height in m m
1,780
Kerb weight kg
1,795
Length in m m
5,190
No of doors
4
Width in m m
1,860
No of speakers
4
Boot space in litres
1,700
Arai mileage
14
Diesel fuel tank capacity litres
55
Emission norm compliance
BS VI
Fuel tank capacity
55
Fuel type
Diesel
Max power
78
Max torque
176
Advance safety features
Hydraulic Brake with large Booster (26.67 cm) and LSPV,Ventilated Front Disc Brake with Twin Pot Caliper,Brake Override System,Chassis and Cabin with Crumple Zones,Cross Car Front Beam,Door Side Intrusion Beams,Steel Skid Plate with Engine Bottom Guard, ELR Seat Belts
Front brake type
Ventilated Disc
Front suspension
Double Wishbone, Coil Spring
Rear brake type
Drum
Rear suspension
Semi-Elliptic Leaf Spring
Steering column
Tilt
Steering type
Power
Tyre type
Tubeless
Wheel base in m m
3,095
Wheel size
16
Engine & Transmission
Engine displacement2499
Engine typeVGT Intercooled Diesel
Gear box5-Speed
No of cylinder4
Transmission typeManual
Valves per cylinder4
Ex-Showroom Price
Ex-Showroom Price1384920
Comfort and convenience
Cup holders frontYes
Foldable rear seat60:40 Split
Seating capacity5
Dimension & Capacity
Body typePickup Truck
Gross weight in kg2850
Height in m m1780
Kerb weight kg1795
Length in m m5190
No of doors4
Width in m m1860
Entertainment
No of speakers4
Exterior
Interior
Boot space in litres1700
Performance & Fuel
Arai mileage14.4
City mileage16.56
Diesel fuel tank capacity litres55
Emission norm complianceBS VI
Fuel tank capacity55
Fuel typeDiesel
Max power77.77
Max torque176
Safety & Security
Advance safety featuresHydraulic Brake with large Booster (26.67 cm) and LSPV,Ventilated Front Disc Brake with Twin Pot Caliper,Brake Override System,Chassis and Cabin with Crumple Zones,Cross Car Front Beam,Door Side Intrusion Beams,Steel Skid Plate with Engine Bottom Guard, ELR Seat Belts
Suspension
Front brake typeVentilated Disc
Front suspensionDouble Wishbone, Coil Spring
Rear brake typeDrum
Rear suspensionSemi-Elliptic Leaf Spring
Steering columnTilt
Steering typePower
Tyre typeTubeless
Wheel base in m m3095
Wheel size16
Isuzu S-CAB Variants Comparison
Isuzu S-CAB Videos
Isuzu S-CAB brochure
Download the Isuzu S-CAB brochure for detailed specifications.
S-CAB Frequently Asked Questions
The Isuzu S-CAB has a length of 5190mm.
The Isuzu S-CAB has a width of 1860mm.
The Isuzu S-CAB has a height of 1780mm.
The Isuzu S-CAB is available in 3 colours: Splash White, Titanium Silver, Galana Grey.
The Isuzu S-CAB offers a boot space of 1700 litres.
What is the wheelbase measurement of the Isuzu S-CAB?
The Isuzu S-CAB has a wheelbase of 3095 mm.
What transmission options are available for the Isuzu S-CAB?
The Isuzu S-CAB is available in Manual transmission.
How many variants are available for the Isuzu S-CAB in India?
The Isuzu S-CAB is available in 2 variant(s) in India.
What is the kerb weight of Isuzu S-CAB in India?
The kerb weight of Isuzu S-CAB in India is 1795kg.
What is the engine displacement and fuel type of the Isuzu S-CAB?
The Isuzu S-CAB features an engine displacement of 2499cc (Diesel).
How many doors does the Isuzu S-CAB have in India?
Isuzu S-CAB has 4 doors.
What fuel types are available for the Isuzu S-CAB?
The Isuzu S-CAB is available in the following fuel types: Diesel.
